X-431 EURO LINK HD

Commercial Vehicle Diagnostic Instrument

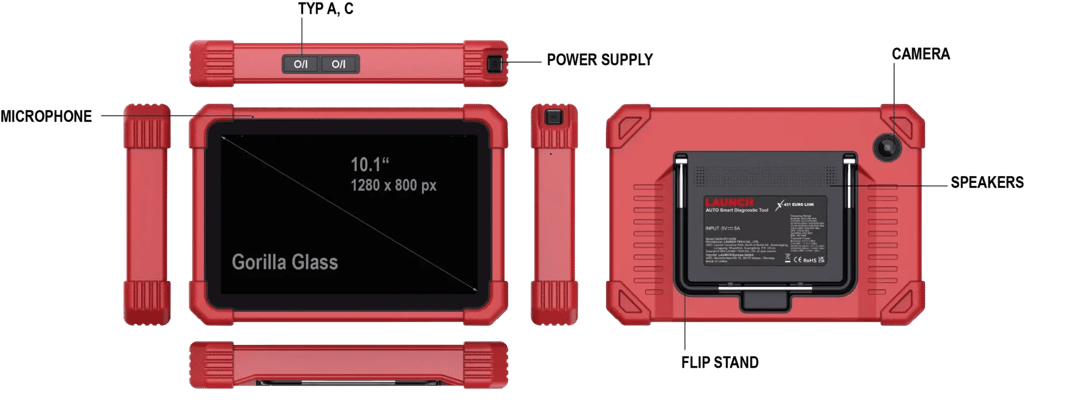

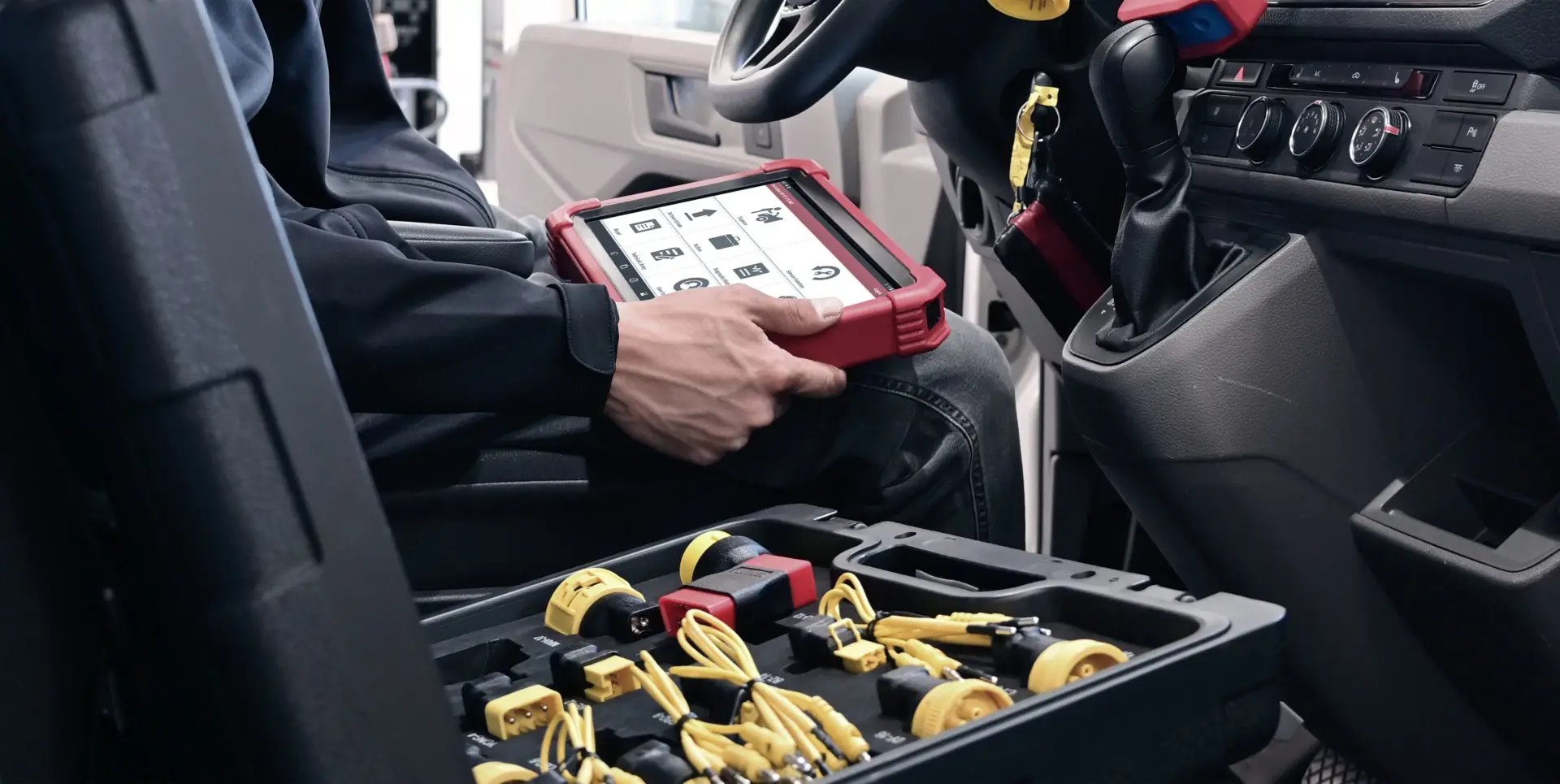

The new LAUNCH X-431 EURO LINK HD is the latest diagnostic solution for vans, trucks and buses (12V+24V). The X-431 EURO LINK HD consists of the X-431 EURO LINK diagnostic unit and the new X-431 SmartLink HD BOX with Bluetooth and comprehensive software for multiple truck manufacturers. The truck diagnostic device impresses with a 10.1″ display, a powerful 2.0 GHz 4 core processor, memory capacities of 4 GB RAM + 64 GB ROM, as well as a long-life battery and is based on an Android 10.0 system. Full diagnostic power for more speed, stability and durability in truck diagnostics. The X-431 EURO LINK HD supports comprehensive system diagnostics such as reading and clearing fault codes (DTCs), reading data streams, special functions and activation tests. It also features DoIP and Pass-Thru, as well as the possibility of LAUNCH SRDs remote diagnostics via a stable internet connection.

Cummins

DAF

Ford (Diesel)

Freightliner

Fuso

GM (Diesel)

Iris Bus

Irizar

Isuzu

Iveco

Kenworth

Mack

MAN

Mercedes-Benz

Mitsubishi (Diesel)

Neoplan

Renault

Scania

Setra

Volvo

Remote Diagnosis

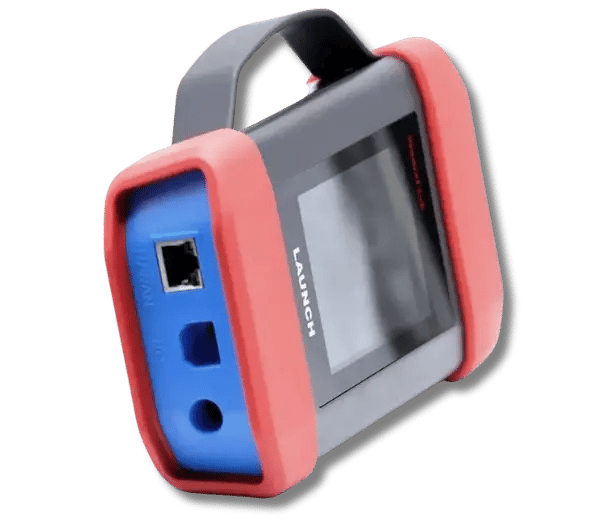

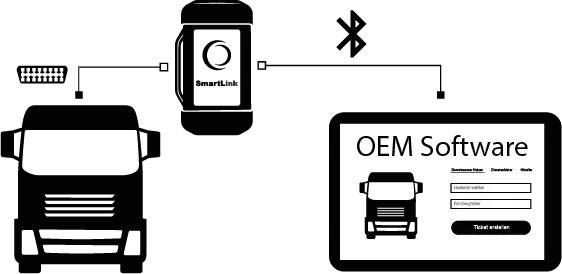

The new LAUNCH HD Box has been specially developed for the diagnosis of commercial vehicles and also offers the option of remote diagnosis. In addition, the HD Box features DoIP and Pass-Thru as well as the possibility of LAUNCH SRDs remote diagnosis via a stable internet connection. In this way, technical problems that go beyond local diagnosis can additionally be processed and solved via remote diagnosis in OEM quality. This often saves time and costs and offers the workshop an additional service portfolio.

Integrated Database TruckSET Business and Ultimate

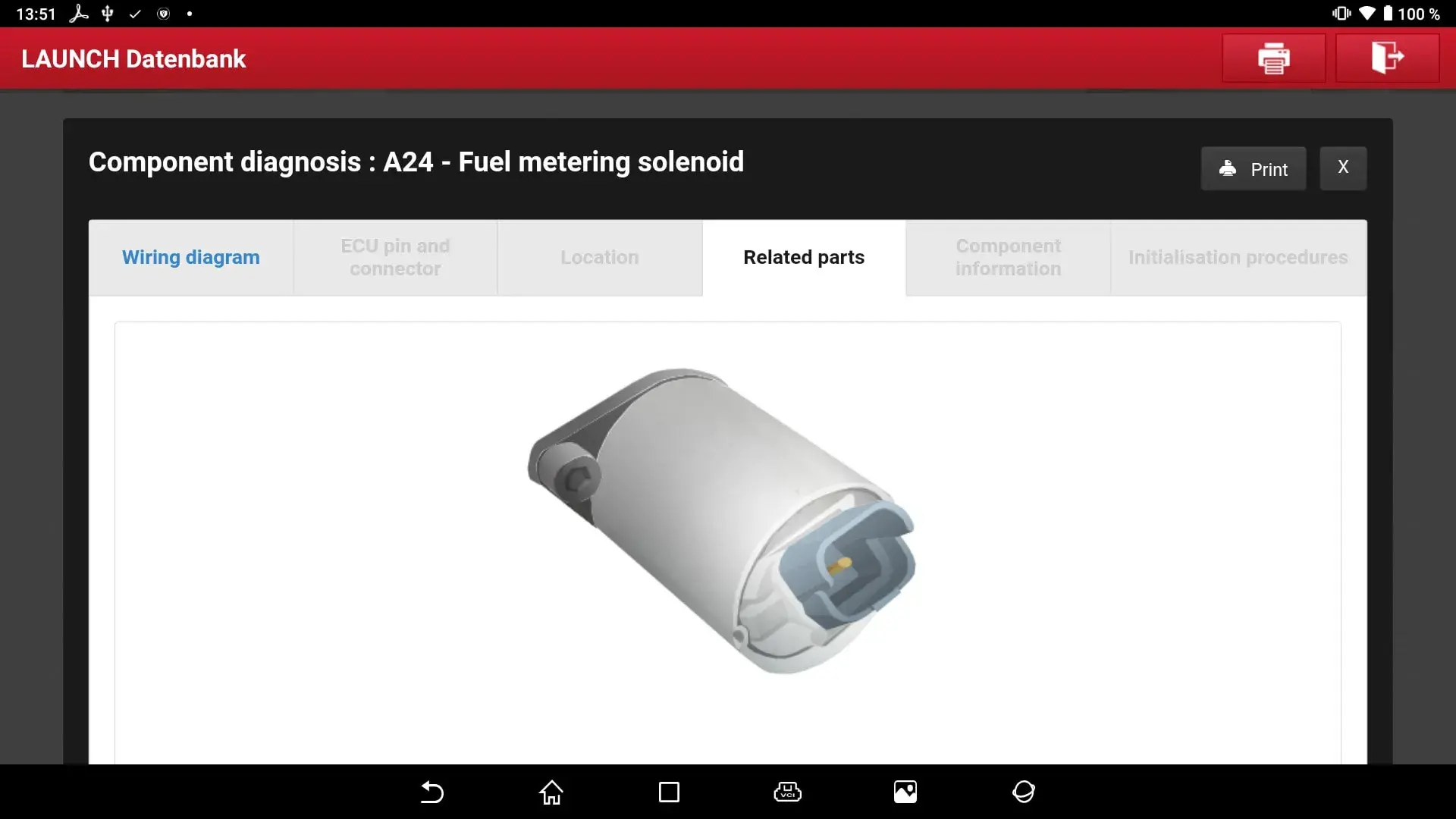

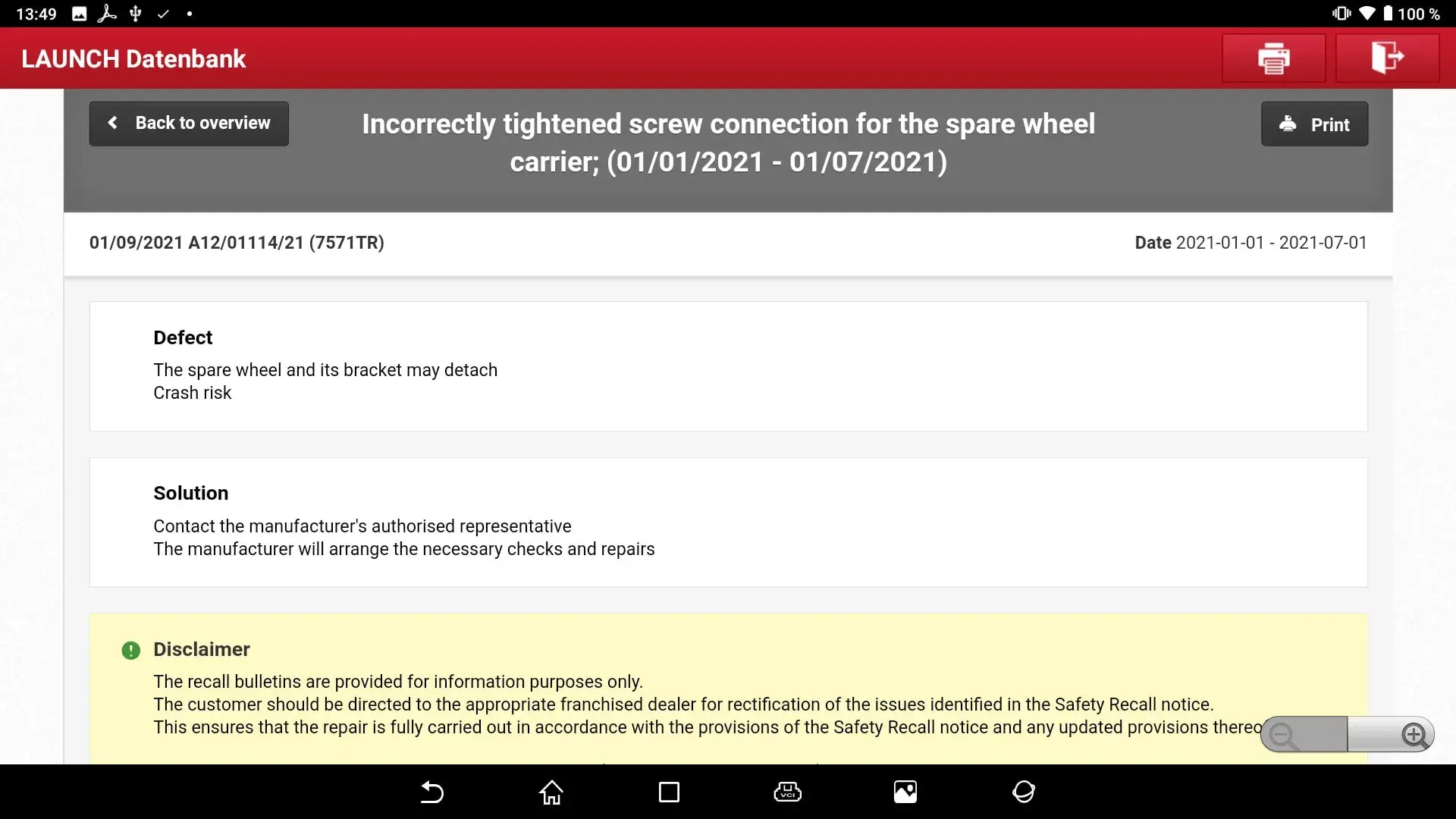

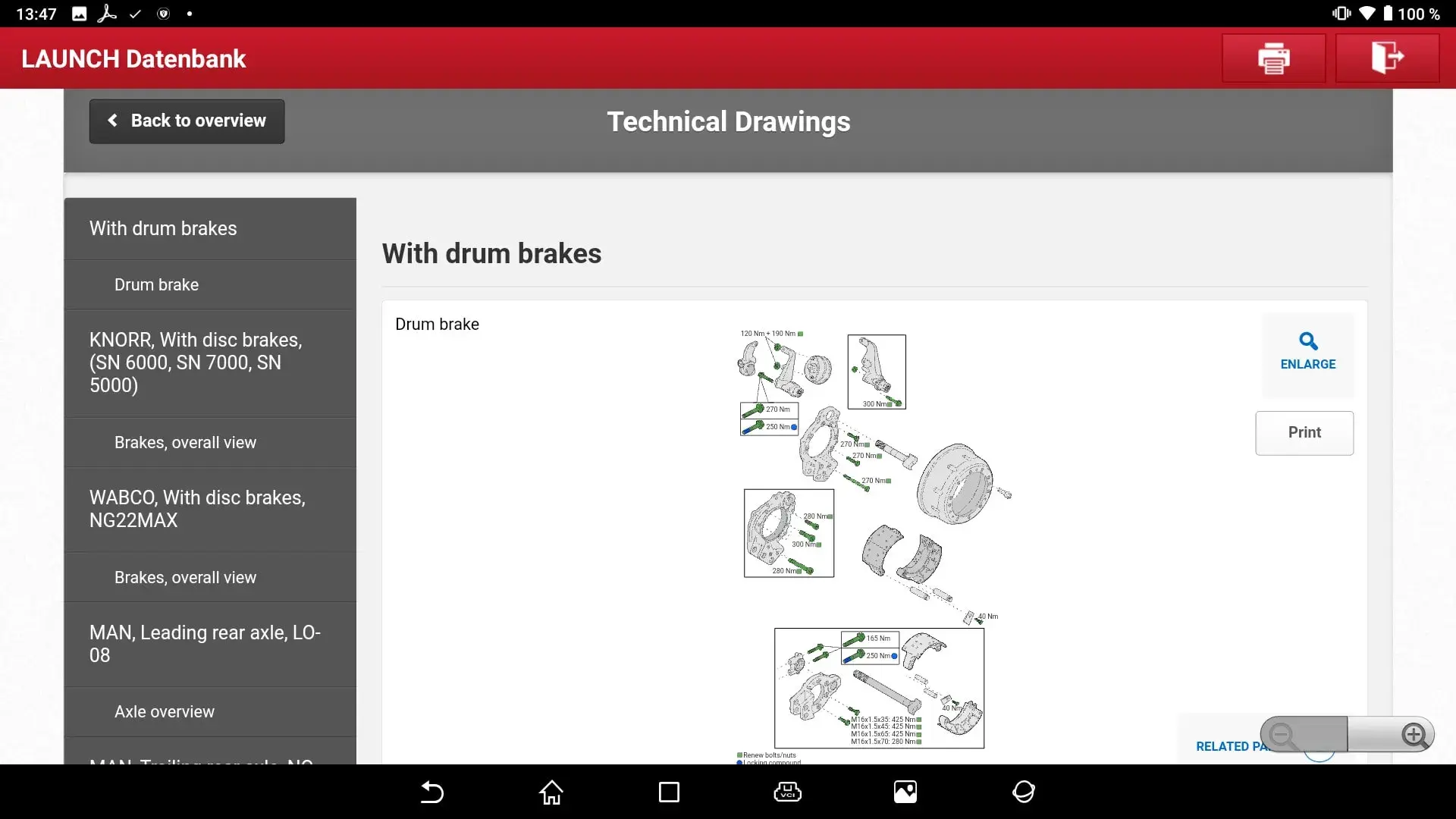

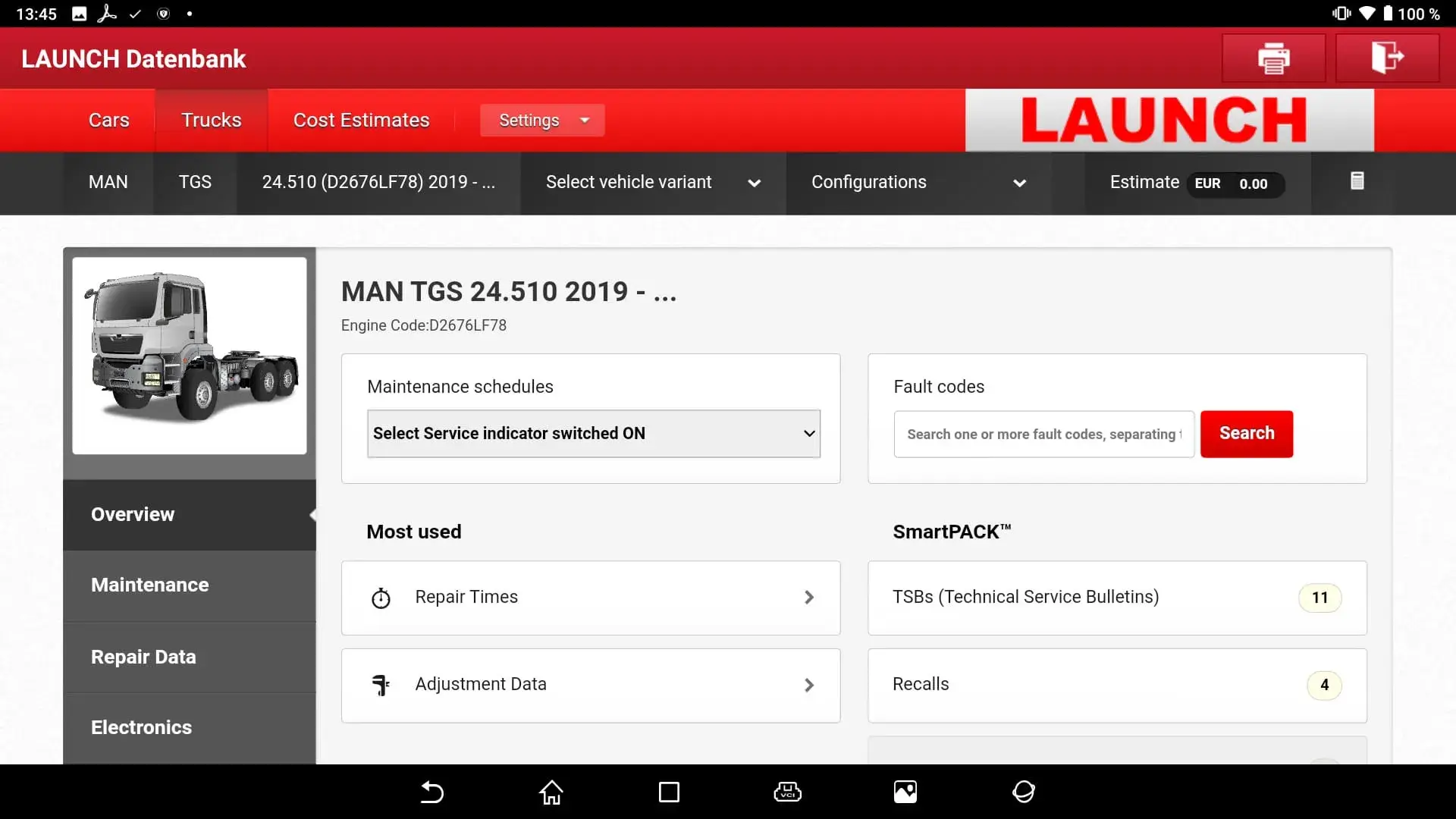

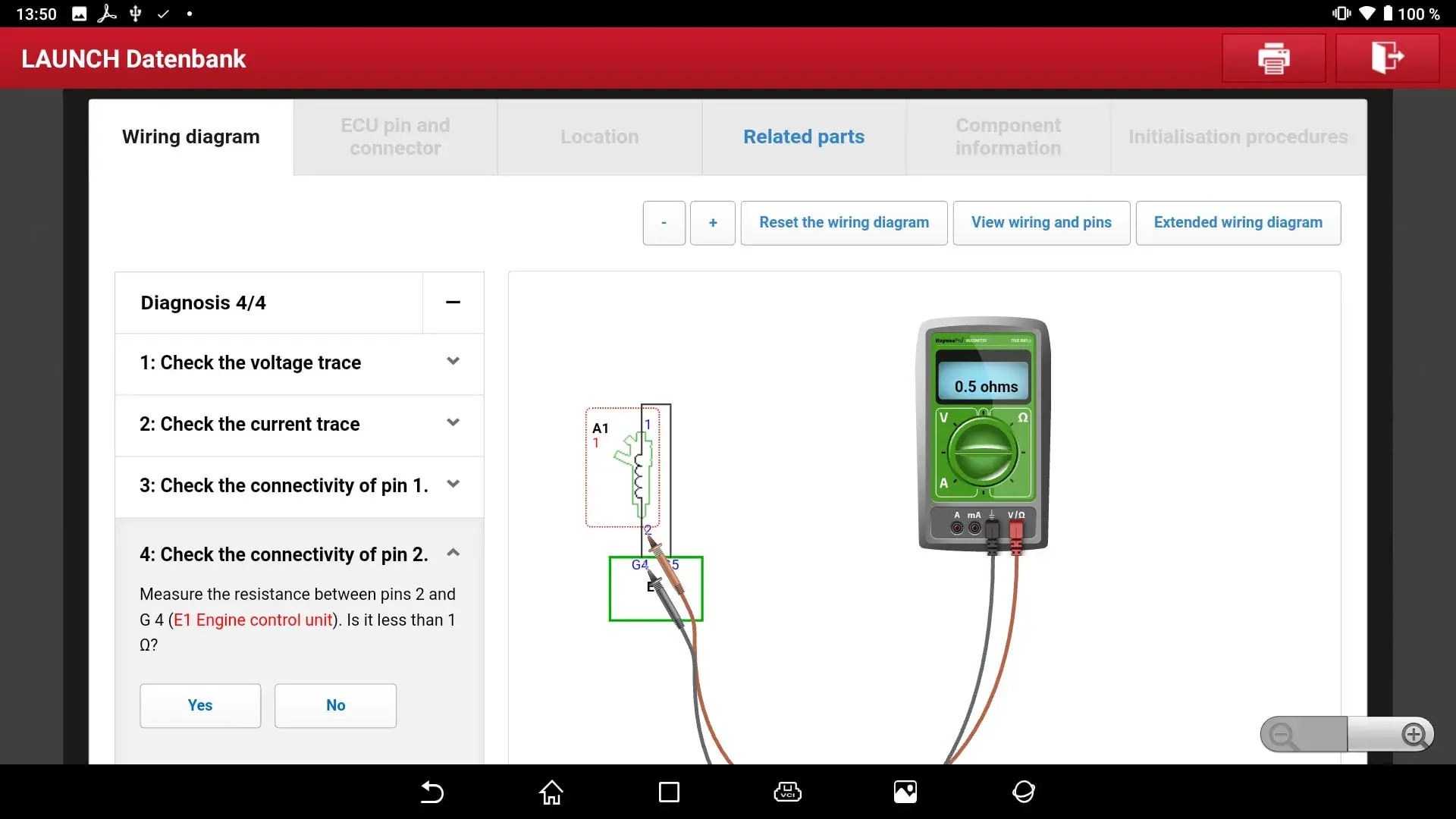

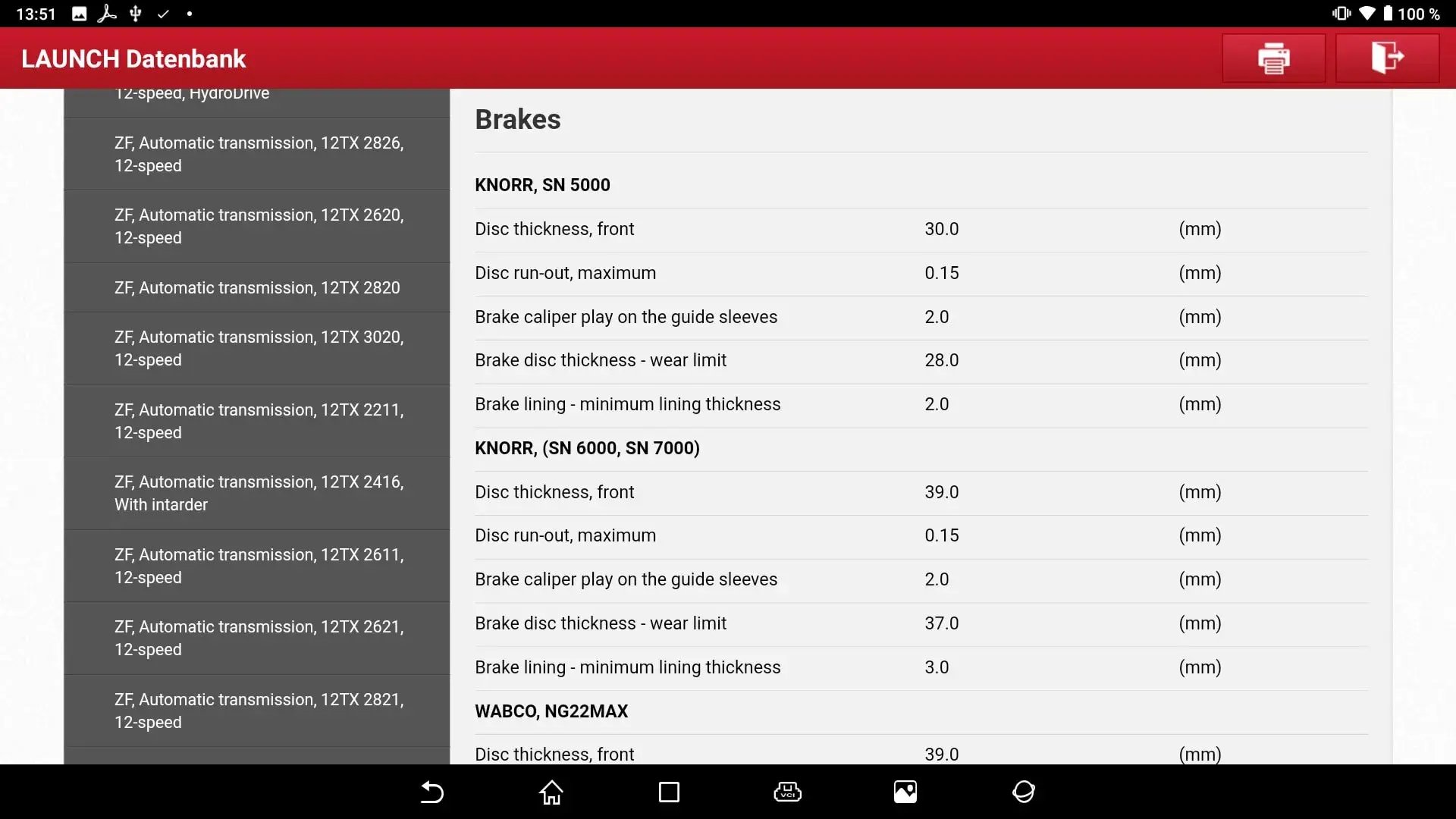

The optionally available LAUNCH database packages powered by HaynesPro also offer additional help, supporting the technician in fault localisation and repair with a wealth of information, such as technical drawings and information on installation locations. This significantly simplifies the identification, localisation and resolution of faults on trucks and reduces the time spent in your professional workshop. The database packages can be set up in modules and are already embedded in our new professional X-431 diagnostic devices. The LAUNCH database solutions of Haynes Pro Business Truck Set and Ultimate Truck Set offer not only a broad vehicle coverage but also optimal support for fault analysis on the vehicle.

Gas Particular Filter Regeneration

Parameter Settings

Cylinder Deactivation Compression

Service Reset

Injector Coding

Speed Limit Adjustment

Idle Speed Adjustment

Fan Calibration

Remote Throttle

Urea Drive DEF

Deep Clearing of DTCs

Nox Sensor

Android 10

Processor

2.0 GHz 4 Core

Memory

4 GB

Storage

64 GB

WiFi

2,4 - 5 GHz

Bluetooth

Camera

5 MP/ 8 MP

Dimensions

274 x 190 x 40 mm

Scope of Delivery

Softcase, X-431 EURO LINK HD, SmartLinik C, DoIP Adapter Cable, VCI Connection Cable, Power Adapter, HD Pack: CAT-9 PIN, VOLVO-8 PIN, OBD-16, OBD-9, JUMPER-10, OBD-6, IVECO-30 PIN, IVECO-38 PIN, MAN-12 PIN, BENZ-14 PIN, MITSUBISHI-12+16/ Fuso 12+16 PIN, MAN-37 PIN, RENAULT-12 PIN
