Documentation Calibration Report
ADAS PRO+ Calibration Report The ADAS calibration report documents the calibration of Advanced Driver Assistance Systems (ADAS) carried out in a vehicle. A typical ADAS calibration report contains the following information
- Vehicle details
- Type of ADAS calibration
- Calibration standards
- Calibration instruments
In addition, the exact calibration procedure is described. The report contains the results of the calibration, including any error codes that occurred during the process and whether the calibration was completed successfully. An ADAS calibration report is important to prove that the calibration was carried out correctly and to ensure the safety and functionality of the ADAS system in the vehicle. It also serves as proof for insurance claims or warranty claims in connection with ADAS components.

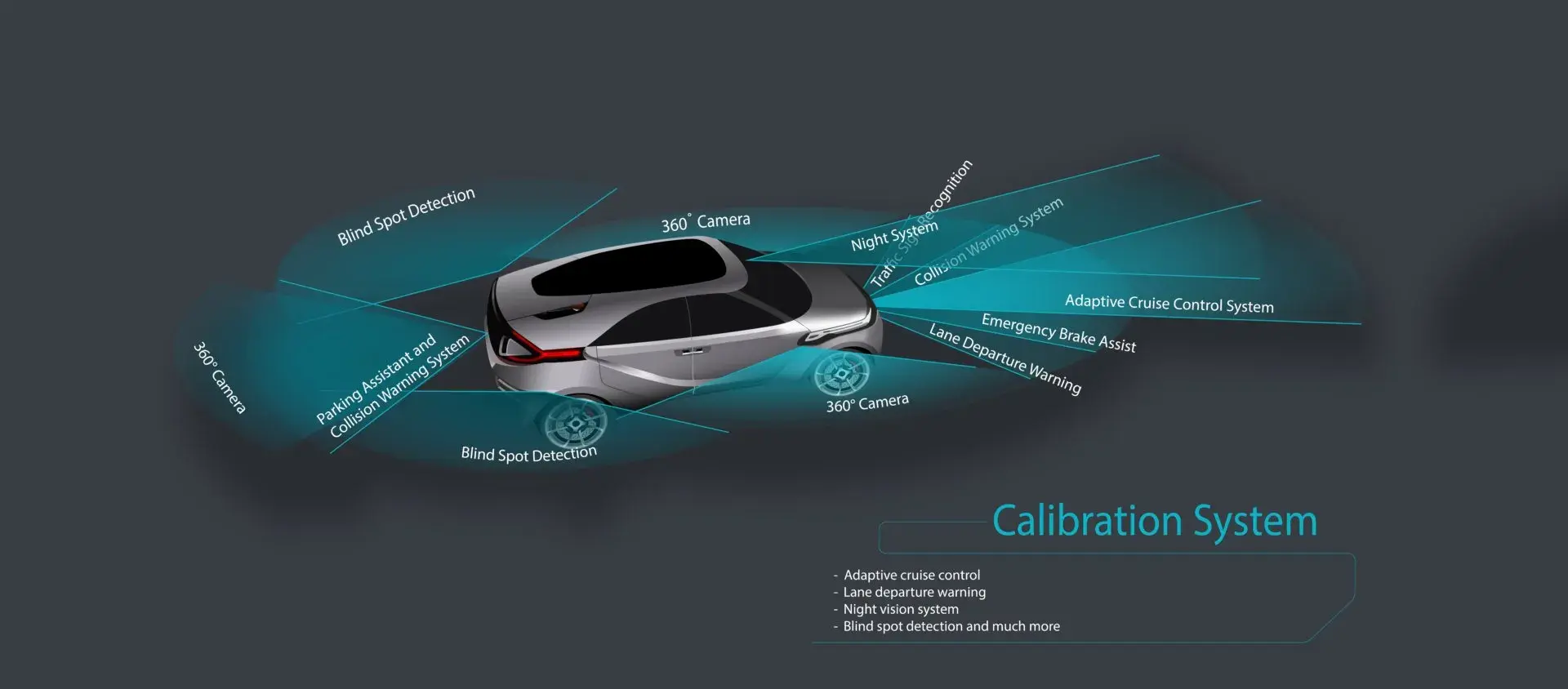

Radar and Camera Calibration

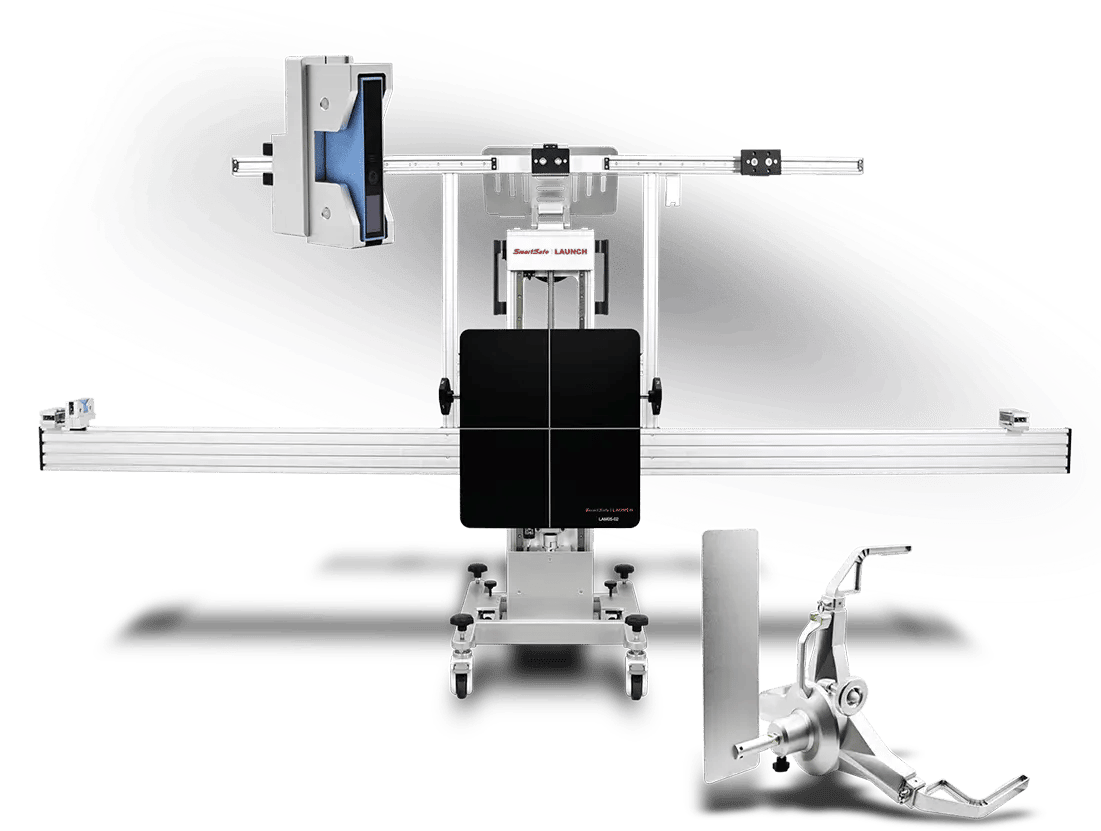

With the technical progress in the automotive industry and the introduction of advanced driver assistance systems (ADAS), it is becoming increasingly important to ensure that these systems function optimally. Thanks to the state-of-the-art calibration technology of the LAUNCH ADAS PRO+ system, all driver assistance systems installed on the vehicle can be checked and calibrated. This ensures your safety and the performance of your radar and camera-based ADAS systems at all times.
Only in combination with
X-431 EURO TURBO II, EURO LINK or TAB III
In addition to the LAUNCH ADAS PRO+, a LAUNCH diagnostic device from the X-431 series is always required for ADAS calibration. Via the main menu, the user can access the toolbox area with a single click, where the ADAS calibration is stored as a software function. Thanks to the intelligent ‘step-by-step’ instructions, the user is optimally supported in the alignment of the ADAS and the calibration process.
You can find more information about our latest devices here:
.webp)

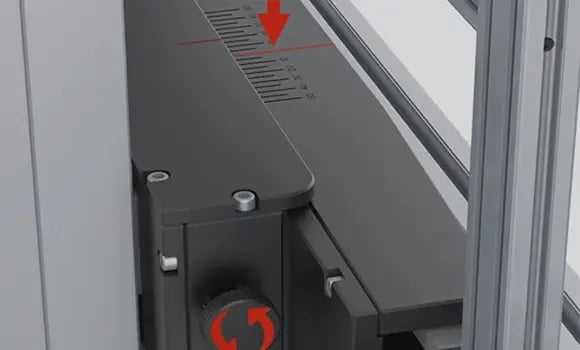

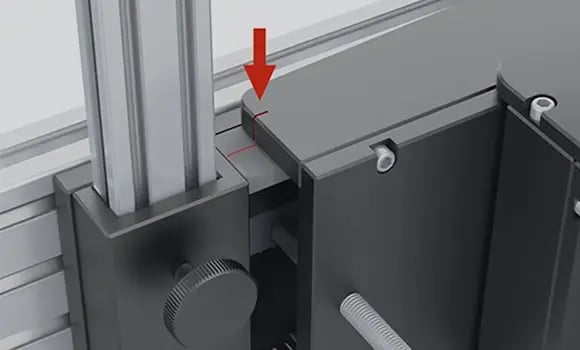

Fine Adjustment for Parallel Alignment
After the basic alignment of the X-431 ADAS PRO+ in front of the vehicle, you can easily fine-tune it precisely to the vehicle using the parallel fine adjustment.
.webp?width=580&height=350&name=LAUNCH-Europe-ADAS-PRO-PLUS-deta%20(1).webp)

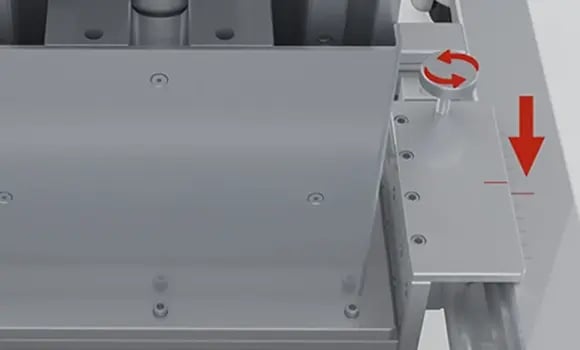

Fine Adjustment to Left and Right
After the basic alignment of the X-431 ADAS PRO+ in front of the vehicle, you can adjust it precisely to the vehicle using the fine adjustment to the left and right.
.webp?width=580&height=350&name=LAUNCH-Europe-ADAS-PRO-PLUS-deta%20(2).webp)
Fine Adjustment to Front and Rear
After the basic alignment of the X-431 ADAS PRO+ in front of the vehicle, you can adjust it precisely to the vehicle using the fine adjustment to the front and rear.
.webp?width=580&height=350&name=LAUNCH-Europe-ADAS-PRO-PLUS-deta%20(3).webp)

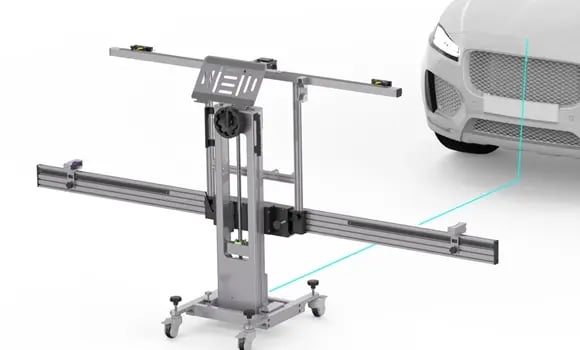

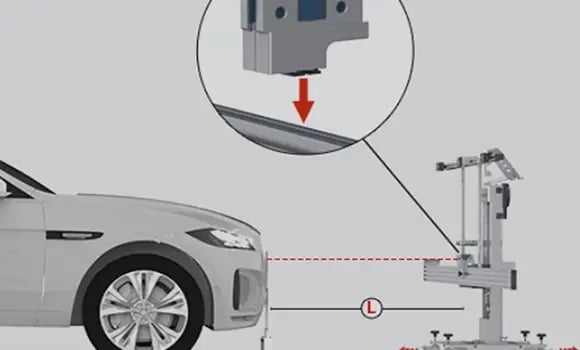

Distance Laser
After the basic alignment of the X-431 ADAS PRO+ in front of the vehicle, you can easily fine-tune it precisely to the vehicle using the parallel fine adjustment.
