TTM-313

TTM-313

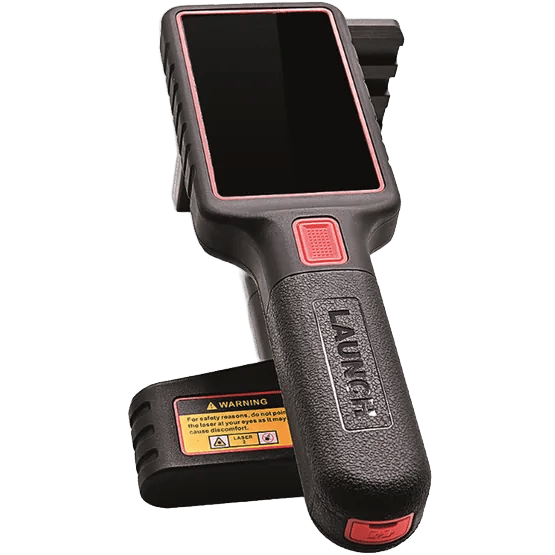

Tyre Tread Depth Measurement Device

Introduction

The TTM-313 Tyre Tread Depth Measurement Device represents the next generation of digital tyre inspection technology. Designed for modern workshops and tyre specialists, this advanced handheld tool uses high-precision laser scanning to measure tread depth across the entire tyre surface in just seconds.

Delivering accurate, real-time results alongside intelligent analysis and reporting, the TTM-313 enables technicians to quickly assess tyre condition, identify uneven wear, and provide clear maintenance recommendations. Fully compatible with LAUNCH diagnostic platforms, it integrates seamlessly into existing workflows—making tyre inspection faster, smarter, and more efficient.

Features & Benefits

• Full Tyre Tread Laser Scanning
  Advanced line laser technology scans the complete tread surface in a single pass, delivering comprehensive and consistent measurement results.
• Fast & Accurate Measurement
  Achieves precise readings with an accuracy of up to 0.1 mm in as little as three seconds, improving efficiency in busy workshop environments.
• No Wheel Removal Required
  Measure tread depth directly on the vehicle without lifting or removing the tyre, saving time and simplifying inspections.
• Dual Measurement Modes
  Supports both full tread surface scanning and individual groove measurement for flexible diagnostic use.
• Tyre Condition Analysis
  Provides detailed wear analysis, detecting uneven tread patterns that may indicate alignment or suspension issues.
• Intelligent Reporting System
  Automatically generates professional inspection reports with maintenance and replacement recommendations, improving customer communication.
• QR Code & Wi-Fi Data Sharing
  Easily share reports via QR code, with automatic data upload through Wi-Fi for seamless record keeping.
• DOT Code Recognition
  Captures tyre DOT codes via the built-in camera, allowing accurate tracking of tyre age and service intervals.
• Braking Distance Prediction
  Uses tread depth data to estimate braking performance, helping to enhance vehicle safety.
• Wide Measurement Coverage
  With a measurement width of up to 180 mm, it accommodates a wide range of tyre sizes and profiles.
• LAUNCH X-431 Integration
  Fully compatible with LAUNCH X-431 diagnostic tools, enabling report storage, sharing, and workflow integration.

Technical Specifications

• Measurement Accuracy: 0.1 mm
• Measurement Time: Approx. 3 seconds
• Measuring Width: Up to 180 mm
• Display: 3.97” LCD touchscreen (480 × 800)
• Processor: Quad-core RK3326-S
• Memory: 2 GB RAM / 32 GB internal storage
• Camera: 2 MP (for DOT recognition)
• Connectivity: Wi-Fi & Bluetooth
• Battery: 3.7V, 5000 mAh rechargeable
• Charging Port: USB Type-C
• Dimensions: 270 × 105 × 100 mm

Key Features & Functions

• Comprehensive TPMS operations including sensor activation, programming, relearning and diagnostics
• Reads, copies and writes sensor ID data for accurate tyre monitoring
• Supports both 433 MHz and 315 MHz sensor frequencies for wide compatibility
• Covers over 98% of vehicles equipped with TPMS systems
• Enables tyre ID matching and relearning via OBD connection
• Generates sensor IDs automatically or manually for flexible programming

Advanced Diagnostics & OBD Functions

• Full OBD-II diagnostic capabilities including reading and clearing fault codes (DTCs)
• Displays live data, freeze frame data and emissions-related information
• Helps identify the root cause of warning lights and verify completed repairs
• Built-in DTC library and vehicle information access (including VIN recognition)

Service & Workshop Functions

• 12 service functions including:
  • Oil service reset
  • Brake reset and ABS bleeding
  • Battery reset and matching
  • DPF regeneration
  • Injector coding
  • Steering angle sensor reset
  • Throttle relearn and more

User Features & Connectivity

• 4” colour touchscreen for easy navigation and operation
• Wi-Fi updates for quick and convenient software upgrades
• Ability to generate and share detailed TPMS diagnostic reports
• Data management tools including screenshots, feedback and built-in help resources

Technical Specifications

• Battery: 4000 mAh rechargeable
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Compact dimensions: 159 x 88 x 37 mm
• OBD input voltage: 9–18V
