Incoming inspection
A vehicle with high-voltage (HV) technology comes into the workshop due to a problem.
Diagnosis of the HV vehicle

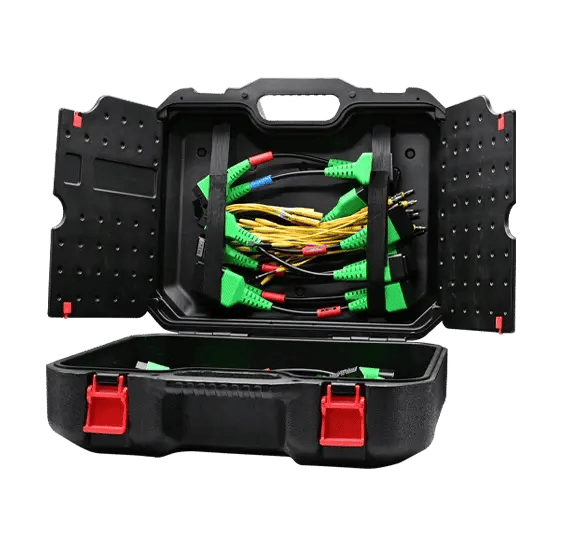

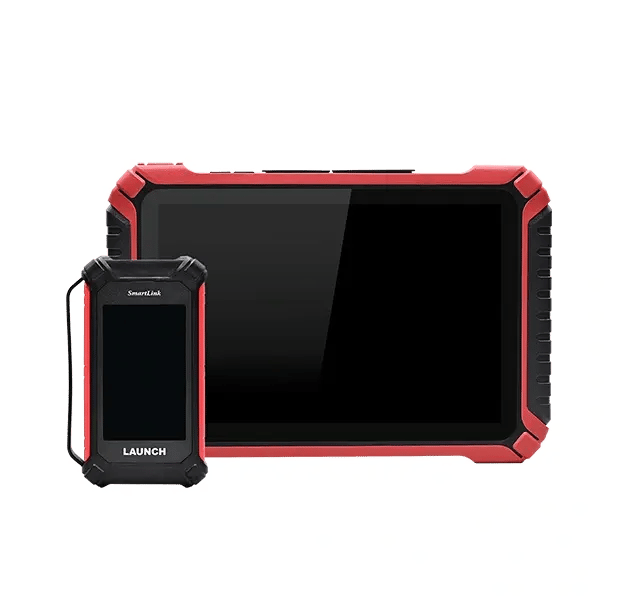

With the X-431 EURO TAB III, the HV ADD-ON Kit & EG100 current clamp, a comprehensive diagnosis is carried out.
Error detection
A fault is detected in a cell of the HV battery.
Safety steps
The HV system is de-energised according to the manufacturer’s specifications.
Battery removal

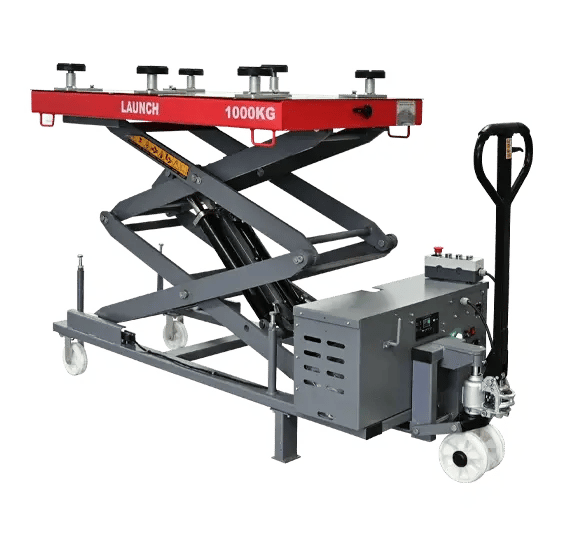

Mit dem speziell entwickelten Hebesystem TLT610 wird die HV-Batterie ausgebaut.
TLT610 EV-Battery LiftLAUNCH Europe Elektro EVP711 absprung
Battery inspection and discharge

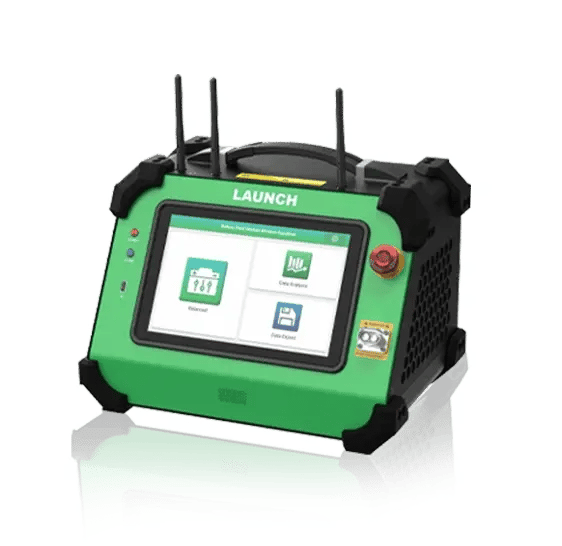

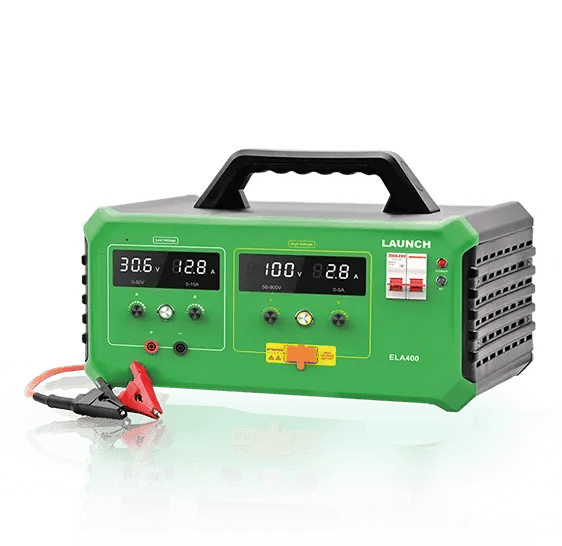

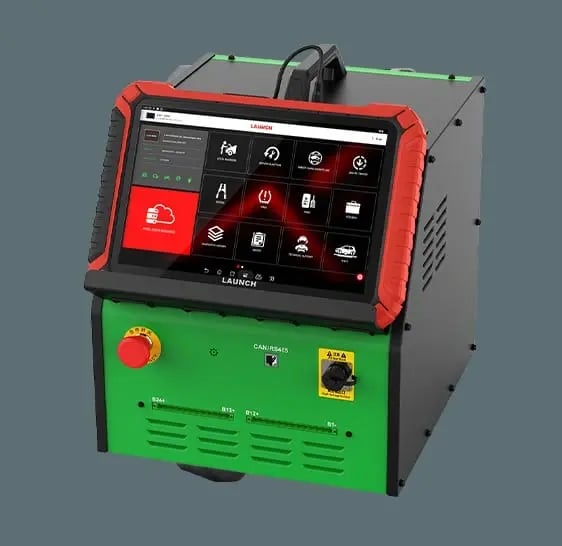

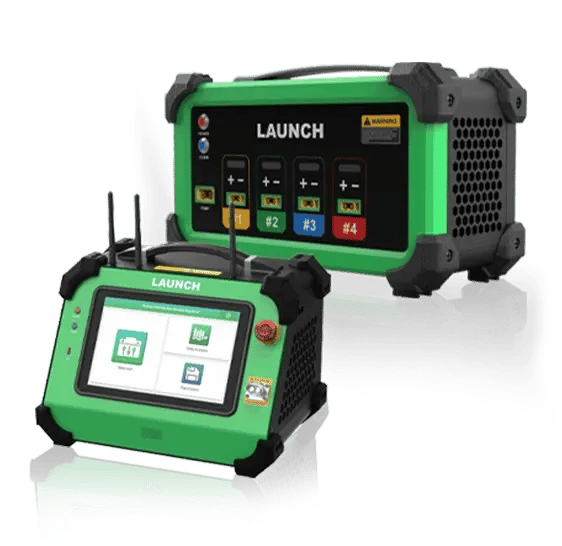

The HV battery is opened. The ELP 400 is used to discharge the cell module in order to be able to work safely and voltage-free.

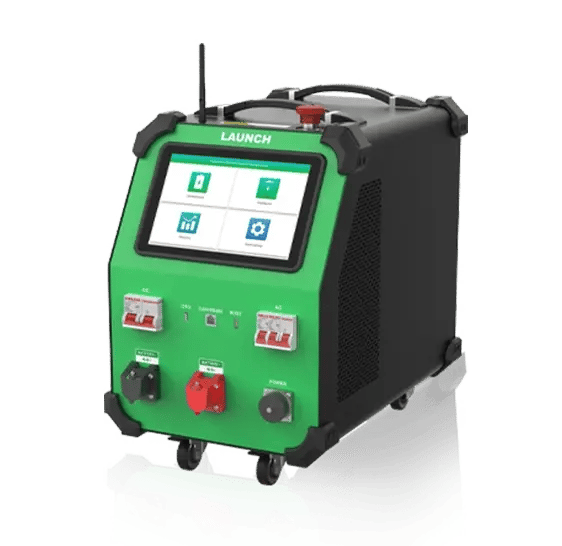

EVP711 EV Battery Pack Module Charging and Discharging Device
Module exchange
The defective module or cell is replaced.
Voltage equalisation
With the ELB 300, all cells are brought to the same voltage level.
Leak test
The ELT 500 is used to perform a thorough leak test of the HV battery.
Battery assembly
With the TLT610 lifting system, the HV battery is safely mounted again.
Insulation resistance test

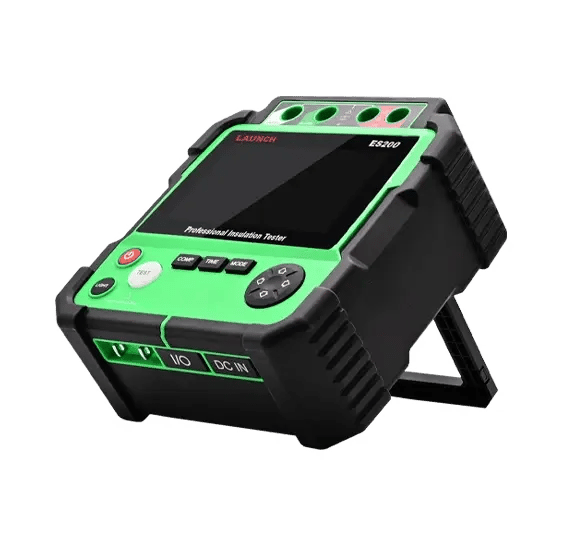

The ES 200 is used to measure the insulation resistance in order to check the high-voltage battery for short circuits.
Commissioning
The HV system is put into operation according to the manufacturer’s specifications. The vehicle is now ready for use again.
