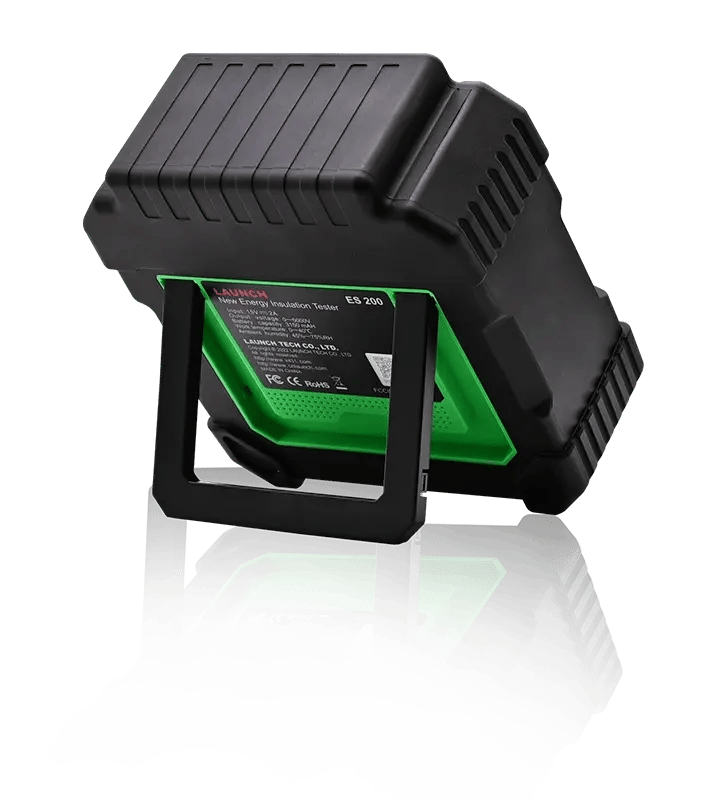

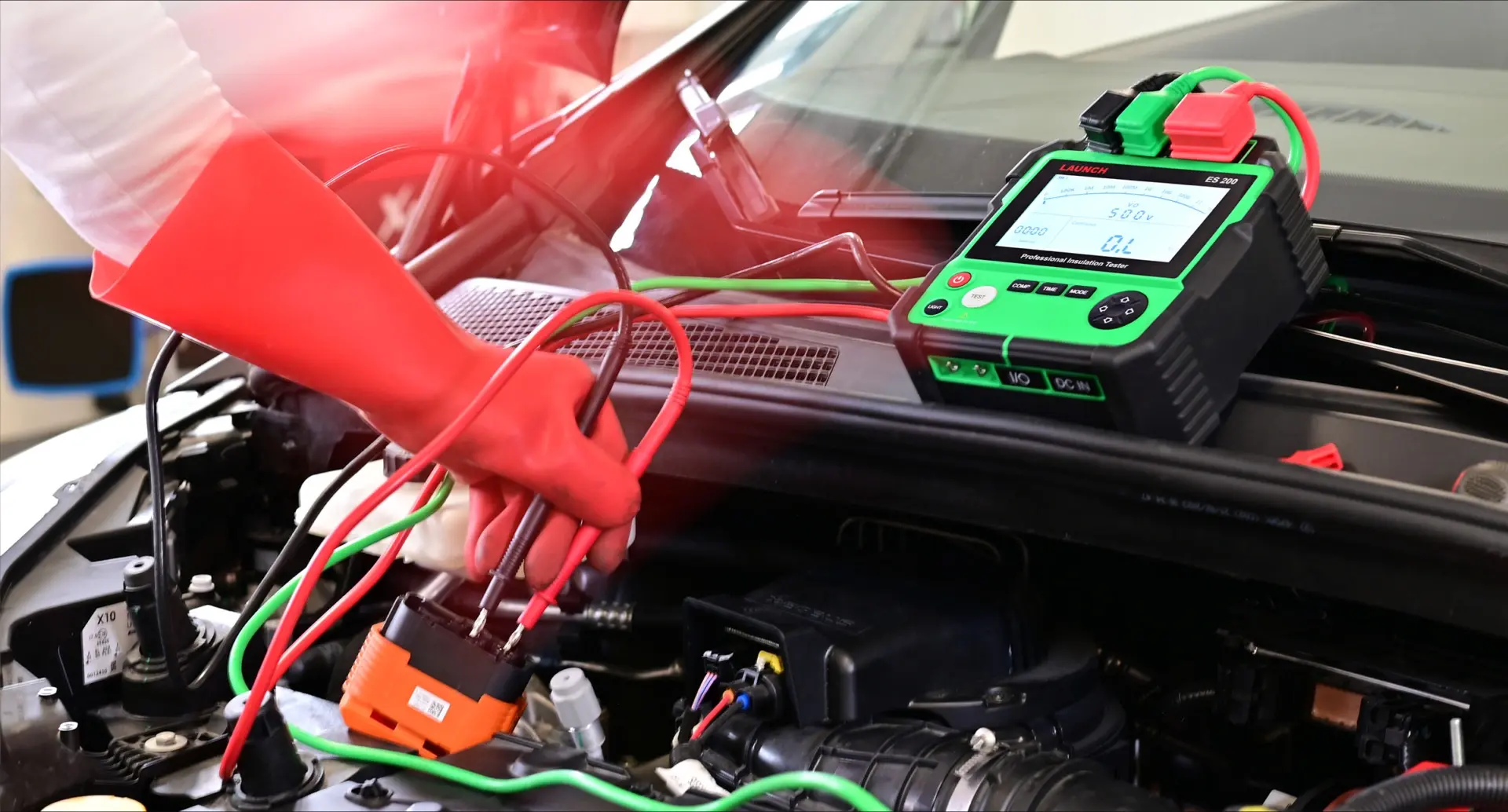

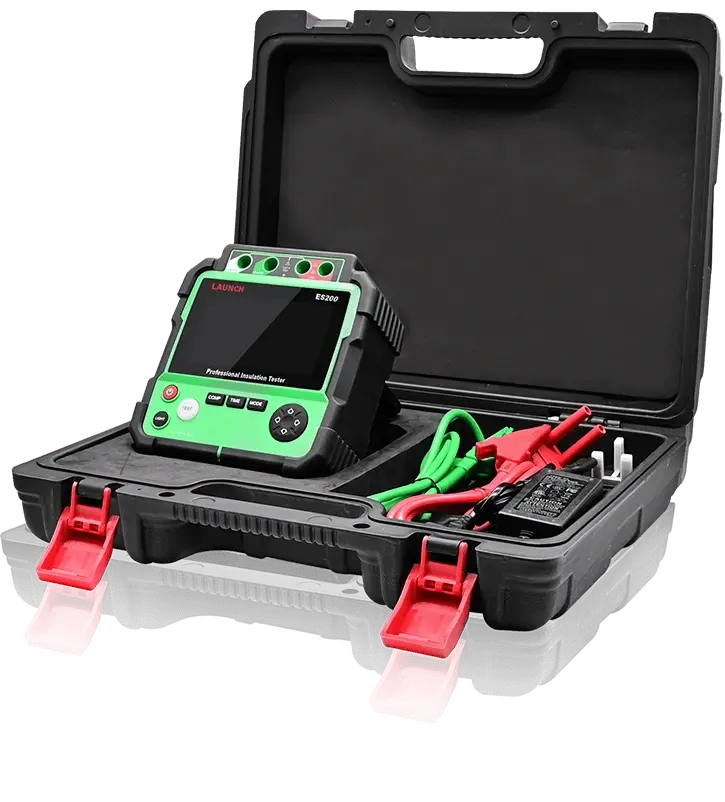

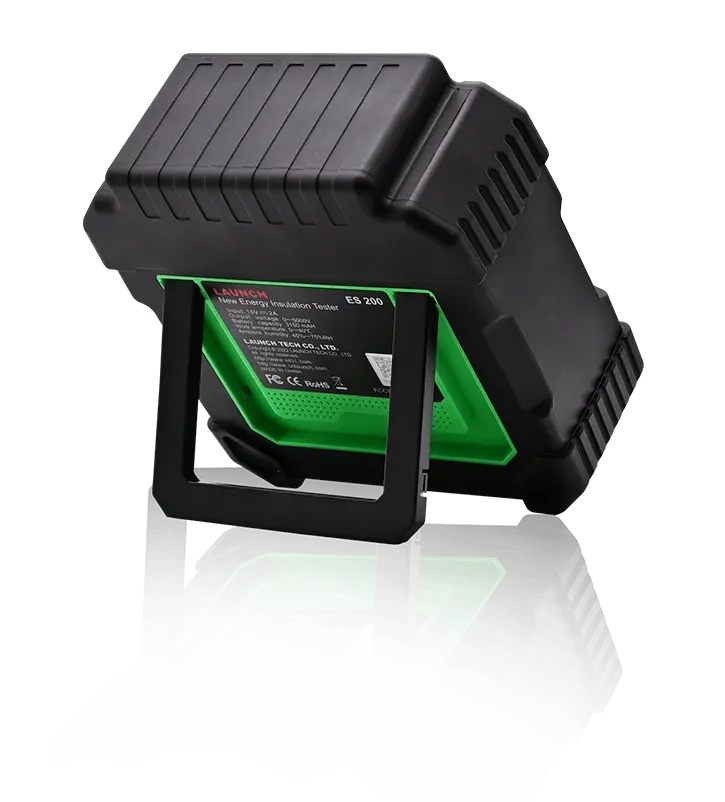

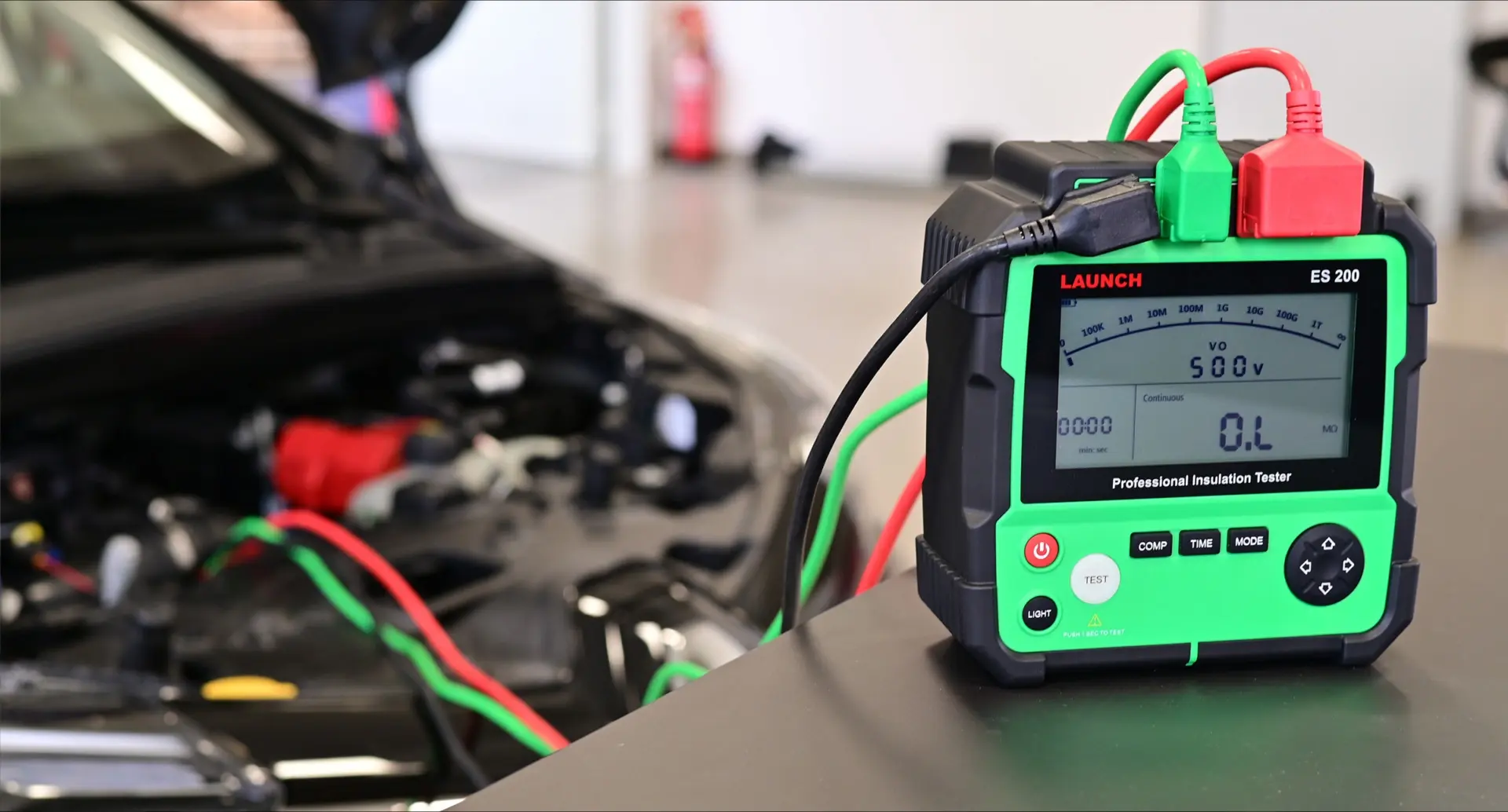

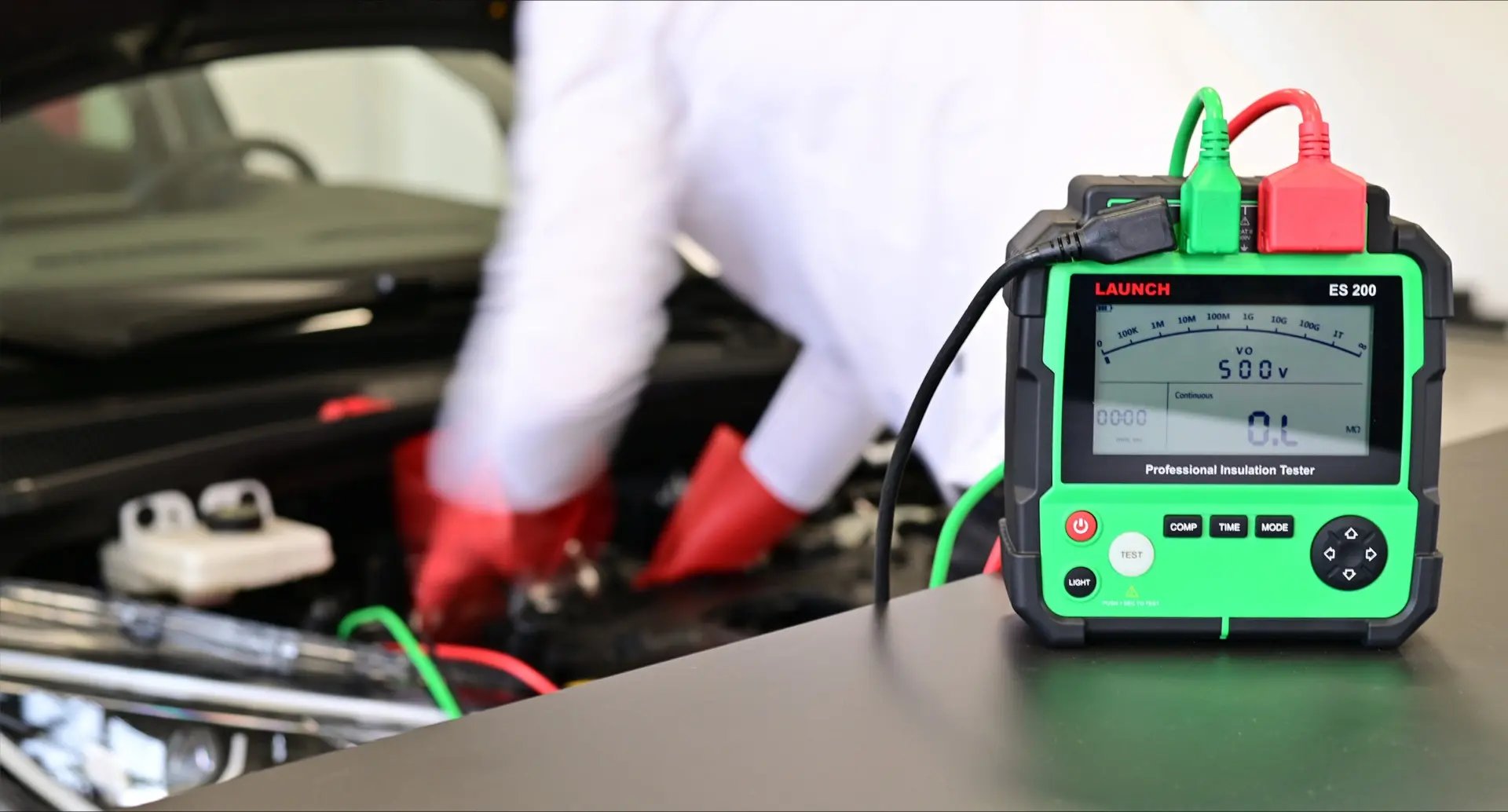

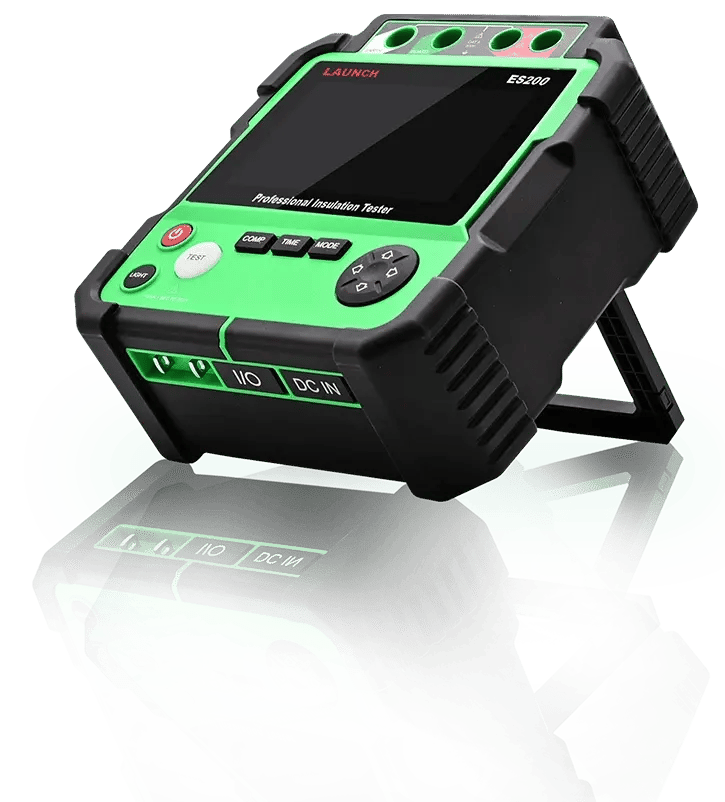

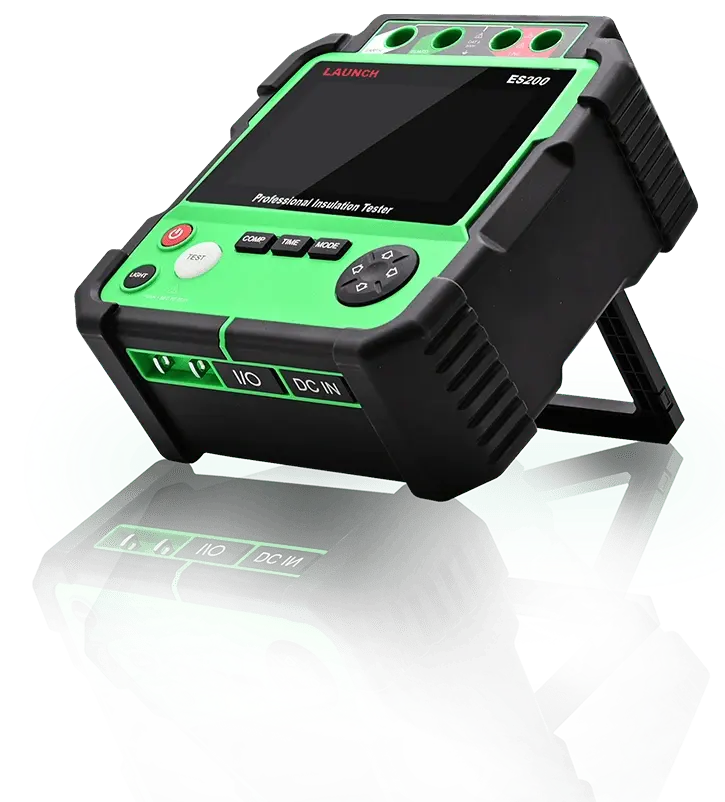

The ES200 insulation tester is equipped with advanced measurement and data processing software that enables it to perform complete measurements of insulation resistance, voltage and other parameters in hybrid vehicles. Its reliable performance and user-friendly handling make it ideal for on-site measurements and maintenance of vehicles with high-voltage batteries and power supply lines. This is particularly important after repairs to vehicles with high-voltage technology, as manufacturer requirements often stipulate a final insulation test.
Measures insulation restistance
Measures insulation restistance
Electric shock protection
Electric shock protection
High DC voltage
High DC voltage
Measures insulation resistance
Insulation resistance refers to the leakage current of the insulation material between the live part and the exposed non-live metal part (housing).
Safety
Electric vehicle batteries have high voltage characteristics. The use of an insulation tester for measurement can effectively increase the safety of maintenance personnel.
Hohe Gleichspannung
Depending on the product, different values of DC high voltage are applied, e.g. 500V, 1000V, 2500V etc. and a minimum safe insulation resistance value is specified. If the measured resistance is belowthis value, there is a risk of electric shock.
Wide measuring range
For different output voltages, resistance measurement ranges from 10 MOhm to 1000 MOhm.
INSULATION RESISTANCE METER

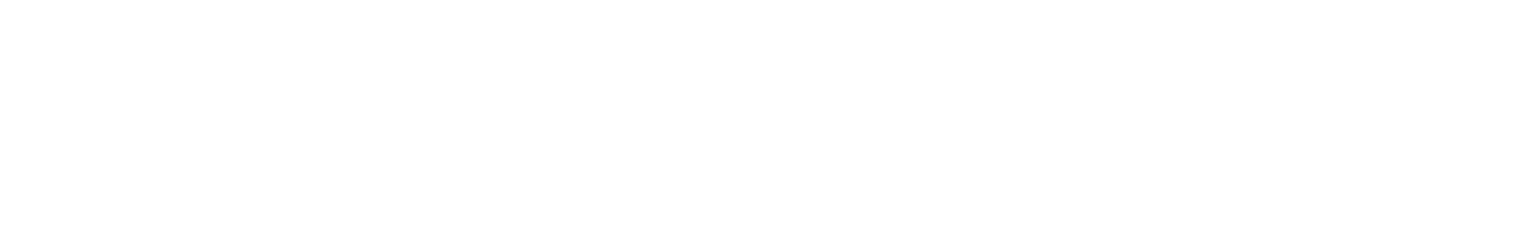

Technical Profile
Battery
3.150 mAh
Voltage Type
DC, AC
Resolution
1 V
Display
5″ LCD
Measurement Accuracy
±3%
Are you interested in an more information?
Write to us directly to receive a quotation or search for an official sales partner in your area.
