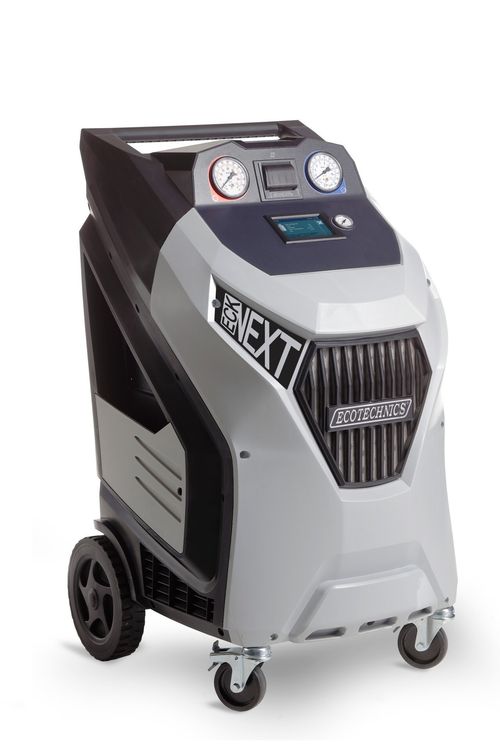

ECK-NEXT Automatic A/C Service Station

£2,840.00 ex VAT£3,408.00 inc VAT


Item has been added to your bag

In Stock
  • Official UK Supplier
    100% Genuine Products
  • Next Day Delivery
    On Orders Placed Before 11am
  • Activate Your Two Year Warranty

ECK-NEXT Automatic A/C Service Station


£2,840.00 ex VAT£3,408.00 inc VAT

In Stock

The ECK-NEXT is a fully automated air conditioning service station for recovery, charging and recycling of either R134a and HFO1234YF

All of our air con machines come with on-site commissioning and user training as well as aftersales support from our technical experts.

ECK-NEXT Key features:

  • Integrated access to vehicle database provides instant information about refrigerant quantity.
  • Large 4.3" touch screen display for an easy, fast and intuitive navigation
  • Manual discharge of non-condensable gases
  • Management report software
  • Built in printer offers complete report of all machine operations and A/C system diagnostics data.
  • 3m hose length for greater accessibility
  • 12kg rechargeable refrigerant bottle

The main benefits of the ECK-NEXT machine are its automatic features which ensure maximum time efficiency within the workplace. These automatic features include:

  • Refrigerant recovery and recycling
  • Replaces identical weight of oil extracted during recovery process
  • High performance programmable vacuum.
  • Injects UV dye by correct weight
  • Bottle heater
  • Acoustic and visual service alarms ensure maintenance and filter replacement is not neglected.

ECK-NEXT Technical specification:

  • Refrigerant: R134a, HFO1234YF
  • Service procedure: automatic/manual
  • Voltage: 220v – 240v/50hz
  • Scale resolution: +/- 10g
  • Oil scale resolution: +/- 5g
  • Operating temp range: 11/49 c
  • Filter system: 2 filters for humidity and acidity
  • Vacuum pump: capacity 84L/min, 0.1mbar vacuum.
  • Compressor: 12cc, hermetic, high pressure
  • Recovery speed: Max 300g/min in liquid phase
  • Refrigerant bottle: 12kg rechargeable
  • Hose length: 3metres
  • Unit dimensions: 50cm x 60cm x 97cm
  • Unit weight: 80kg
  • Software updates: available via internet through RS232 serial line or USB

Available as either a standalone unit or part of a start up package. See 'Kit Contents' for more information.

Code: 1320007

Machine only:

  • ECK3500 Fully Auto A/C Service Station

Machine and start up package:

  • ECK 3500 Fully Auto A/C Service Station
  • Temperature probe (LAUAC2240)
  • UV dye injection kit  (LAUINV2020X1)
  • Schrader valve tool (LAUAC2251)
  • Basic O ring kit (LAU24640)
  • Electronic leak detector (sniffer) (LAU55100)
  • PAG 46 oil – low viscosity (LAUAC2173)
